Startech Pci Express X1 1 17 Gbit S 2 48 Ghz Ism 5 85 Ghz Unii Internal Pex867wac22
Recycle
Conditions Available
Lock
Warranties Available

PEX867WAC22
by Startech
PCI Express x1 - 1.17 Gbit/s - 2.48 GHz ISM - 5.85 GHz UNII - Internal


Unspsc:
43201409
Upc:
702325985542
Description:
The PEX867WAC22 PCI Express AC1200 Wireless Network Adapter lets you add dual-band Wireless-AC connectivity to a desktop computer through a PCIe slot.With increased demand on network resources, this Wireless-AC adapter gives you exceptional speed and range for your office or home wireless network when paired with an 802.11ac router. This dual-band WiFi adapter supports maximum data rates of up to 867 Mbps on the 5GHz band (3x the speed of Wireless-N), plus up to 300 Mbps on the 2.4GHz band, making it the perfect solution for applications like HD video streaming, online conferencing, file transfers and gaming.This versatile PCIe wireless card features a 2T2R (2 transmitter, 2 receiver) detachable antenna design, with an included magnetic antenna stand that can easily be mounted to the top or side of your PC case. Plus, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers. To integrate with all of your networking devices, the adapter is also backward compatible with 802.11a/b/g/n networks.Backed by a StarTech.com 2-year warranty, with free lifetime technical support.
Interfaces/Ports
Host Interface
PCI Express x1
General Information
Product Type
Wi-Fi Adapter
Manufacturer Part Number
PEX867WAC22
Manufacturer Website Address
http://www.startech.com
Packaged Quantity
1
Manufacturer
StarTech.com
Product Name
PCI Express Wireless AC Card
Brand Name
StarTech.com
Miscellaneous
Package Contents
PCI Express Wireless AC Card2 x 5 dBi Dual Band Antennas1 x Antenna Stand1 x Low Profile Bracket1 x Driver CD1 x Instruction Manual
Device Supported
Desktop Computer
Certifications & Standards
CEFCCIEEE Standards:802.11ac802.11a802.11b802.11g802.11n
System Requirements
Operating Systems: Windows 10 Windows 8 Windows 8.1 (32/64-bit) Windows 7 (32/64-bit) Windows Vista (32/64-bit) Windows XP (32/64-bit) Windows Server 2012 Windows Server 2008 R2 Windows Server 2003 (32/64-bit)
Green Compliant
Yes
Green Compliance Certificate/Authority
RoHS
Physical Characteristics
Thickness
700 mil
Weight (Approximate)
2.50 oz
Form Factor
Internal
Height
4.7"
Depth
3.3"
Technical Information
Features
LED Indicator
Wireless Security
WEP (64/128-bit)WPAWPA2TKIPAES
Wireless Transmission Speed
1.17 Gbit/s
Wireless LAN Standard
IEEE 802.11ac
ISM Band
Yes
UNII Band
Yes
ISM Minimum Frequency
2.40 GHz
ISM Maximum Frequency
2.48 GHz
UNII Minimum Frequency
5.18 GHz
UNII Maximum Frequency
5.85 GHz
Number of Antennas
2
Antenna Gain
5 dBi
Antenna Connector
RP-SMA Connector
LENOVO 22P7701

LENOVO 22p7701

LT 1-2 LAN Mini-PCI 802.11b

HP 398393-001

HP 398393-001

HP BLUETOOTH MODULE V2.0 COMPLIANT DOES NOT INCLUDE CABLE -SEE CABLE KIT NC6320/8430

CISCO AIR-CB21AG-A-K9

CISCO air-cb21ag-a-k9

802.11a/b/g Cardbus Adapter; FCC

STARTECH USB433WACDB

STARTECH usb433wacdb

StarTech.com USB 2.0 AC600 Mini Dual Band Wireless-AC Network Adapter - 1T1R 802.11ac WiFi Adapter

UBIQUITI NETWORKS XR2

UBIQUITI NETWORKS xr2

Ubiquiti XTREME Range 2, Internal, Wireless, Mini PCI Express, WLAN, 54 Mbit/s

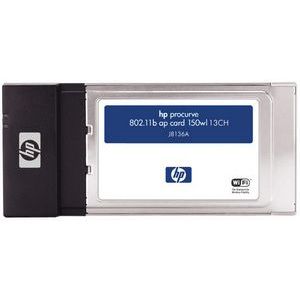

HP J8136A
