PEXUSB3S4V
by Startech
PCI Express x1 - Plug-in Card - 4 USB Port(s) - 4 USB 3.0 Port(s) - PC

Unspsc:: 43211609
Upc:: 851975714306
Description:: Add 4 external USB 3.0 ports to a low profile or standard computer, through PCI Express. The PEXUSB3S4V PCI Express USB 3.0 Card (with SATA Power) adds 4 external USB 3.0 ports to any PCI Express-enabled computer system with support for data rates up to 5 Gbps, while remaining backward compatible with USB 2.0 / 1.x devices.Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.0 controller performs up to 70% faster than conventional USB 3.0 when paired with a UASP supported enclosure (Note: UASP requires a compatible operating system). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details.The card uses a "stacked" port layout that places the ports one on top of the other, enabling all four USB 3.0 ports to be external facing, while still allowing the card to fit into a small form factor/low profile computer system using the included low profile bracket.Plus, with a built-in SATA power connector, each USB port can provide up to 900mA of power to devices that draw power from a host bus connection (500mA for USB 2.0) by connecting to your computer power supply.Backed by a StarTech.com 2-year warranty and free lifetime technical support.Improved Performance with UASPUASP is supported in Windows® 8, Server 2012 and Linux kernel 2.6.3 or later. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.0 at peak performance.At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.Test results were obtained using an Intel® Ivy Bridge system, StarTech.com add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.

Request A Quote

Technical Specifications
Similar Products

Interfaces/Ports

Total Number of USB Ports: 4

Number of USB 3.0 Ports: 4

General Information

Product Type: USB Adapter

Manufacturer Part Number: PEXUSB3S4V

Manufacturer Website Address: http://www.startech.com

Packaged Quantity: 1

Manufacturer: StarTech.com

Product Name: PCI Express USB 3.0 Card

Brand Name: StarTech.com

Miscellaneous

Additional Information: Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64)Windows Server® 2012, 2008 R2, 2003

Package Contents: PCI Express USB 3.0 CardLow Profile BracketDriver CDInstruction Manual

Platform Supported: PC

Green Compliant: Yes

Green Compliance Certificate/Authority: RoHS

Physical Characteristics

Thickness: 700 mil

Weight (Approximate): 1.59 oz

Form Factor: Plug-in Card

Height: 2.7"

Width: 3"

Technical Information

Host Interface: PCI Express x1

STARTECH ecusb3s22

StarTech.com 2 Port ExpressCard SuperSpeed USB 3.0 Card Adapter with UASP Support

Details

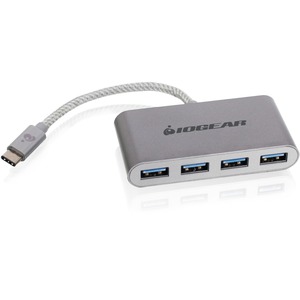

IOGEAR guh3c14
