PEX4S553
by Startech
4 x 9-pin DB-9 Male RS-232 Serial PCI Express x1
- Unspsc:
- 43201559
- Description:
- The PEX4S553 4-Port Native PCI Express RS232 Serial Adapter Card with 16550 UART lets you add 4 RS232 (DB9) serial ports, using a single PCI Express expansion slot.Based on a native single-chip design, this 4-port serial adapter card allows you to harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge-chip serial cards.The RS232 Serial Adapter Card includes 4 half-height/low-profile brackets, allowing the card to be installed into almost any PC case, regardless of form factor.Backed by a StarTech.com Lifetime warranty and free lifetime technical support.
Interfaces/Ports
- Number of Serial Ports (External)
- 4
General Information
- Product Type
- Serial Adapter
- Manufacturer Part Number
- PEX4S553
- Manufacturer Website Address
- http://www.startech.com
- Packaged Quantity
- 1
- Manufacturer
- StarTech.com
- Product Name
- 4 Port Native PCI Express RS232 Serial Adapter Card with 16550 UART
- Brand Name
- StarTech.com
Miscellaneous
- Additional Information
- Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64)Windows Server® 2012, 2008 R2, 2003Mac OS® 10.10 Linux
- Package Contents

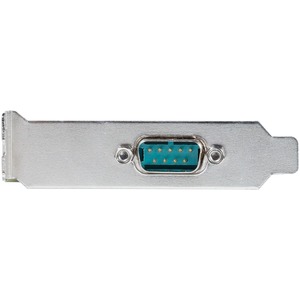

- 4 Port Native PCI Express RS232 Serial Adapter Card with 16550 UART1 x Full Profile Bracket With Two DB9 Connectors4 x Low Profile Bracket1 x Driver CD1 x Instruction Manual
- Green Compliant
- Yes
- Green Compliance Certificate/Authority
- RoHS
Physical Characteristics
- Weight (Approximate)
- 2.80 oz
- Form Factor
- Plug-in Card
- Length
- 4.7"
- Height
- 0.7"
- Width
- 5.1"
- Card Height
- Dual-profile
Technical Information
- Host Interface
- PCI Express x1
- Data Transfer Rate
- 1 Mbit/s
- Platform Supported
- PC
- UART Type
- 16C450
