Conditions Available
Warranties Available
FS516
by Netgear
16 x 10/100Base-TX
- Unspsc:
- 43222612
- Upc:
- 606449001952
- Nsn:
- 5895015225588
- Description:
- NETGEAR's Fast Ethernet switches provide a cost-effective way to instantaneously increase network performance while preserving most of your network investment, including installed cabling and end users' software and hardware. These switches are ideal for intermixing 10 and 100 Mbps devices. They provide you with automatic speed and full/half-duplex sensing per port. Running in full-duplex mode, each port delivers 200 Mbps of network speed. Easy to set up and use, these 500-series switches are ideal for speedily delivering large amounts of multimedia, image, and video information.
Interfaces/Ports
- Number of Network (RJ-45) Ports
- 16
- Total Number of Network Ports
- 16
- Port/Expansion Slot Details
- 16 x Fast Ethernet Network
General Information
- Product Type
- Ethernet Switch
- Manufacturer Part Number
- FS516
- Manufacturer Website Address
- http://www.netgear.com
- Manufacturer
- Netgear, Inc
- Product Model
- FS516
- Product Name
- FS516 Ethernet Switch
- Brand Name
- Netgear
Media & Performance
- Network Technology
- 10/100Base-TX
- Ethernet Technology
- Fast Ethernet
- Media Type Supported
- Twisted Pair
Miscellaneous
- Additional Information
- Accessible: Switched 10/100 Mbps ports provide private 10 or 100 Mbps bandwidth for PCs, servers, or hubs-no need to share and compete with other users for bandwidth. Effective:Each port supports up to 200 Mbps of throughput. Intuitive:These switches begin operating as soon as they are powered on. Every port automatically senses the proper speed and full/half duplex mode, taking the burden of configuration off the user. Explicit:LEDs are integrated with the network ports which simplifies installation and makes network monitoring very easy. Convenient:Built into sturdy, 13-inch metal cases, these units can be mounted in a standard 19-inch rack.
- Package Contents
- Switch unitPower cordRack-mount kitUser guideWarranty cardSupport card
- Certifications & Standards
- IEEE 802.3i 10BASE-T EthernetIEEE 802.3u 100BASE-TX Fast Ethernet Electromagnetic Emissions:CE mark, commercialFCC Part 15 Class AEN 55 022 (CISPR 22), Class AVCCI Class A Safty Agency Approvals:UL listed (UL 1950)/CULTUV licensed (EN 60 950)
Physical Characteristics
- Weight (Approximate)
- 5.50 lb
- Height
- 1.7"
- Width
- 13"
- Depth
- 8"
Power Description
- Input Voltage
- 220 V AC
- Power Source
- Power Supply

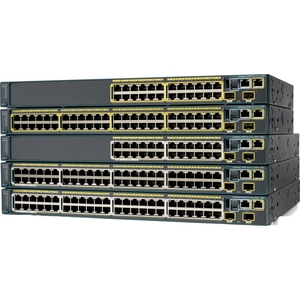

CISCO ws-c2960x-24ps-l
