17103
by Extreme Networks
Manageable - 48 x Expansion Slots - 10/100/1000Base-T - 48 x Expansion Slot - 48 x SFP+ Slots - 3 Layer Supported - Redundant Power Supply - 1U High - 1 Year
- Unspsc:
- 45121504
- Upc:
- 700580842679
- Nsn:
- 3040014060374
- Description:
- The Summit X670 series is available in two models: Summit X670V and Summit X670. Summit X670V provides high density for 10 Gigabit Ethernet switching in a small 1RU form factor. The switch supports up to 64 ports in one system and 448 ports in a stacked system using high-speed SummitStack-V160, which provides 160 Gbps throughput and distributed forwarding. The Summit X670 model provides up to 48 ports in one system and up to 352 ports in a stacked system using SummitStack-V longer distance stacking technology (up to 40 km with 10GBASE-ER SFP+) .
General Information
- Brand Name
- Extreme Networks
- Manufacturer
- Extreme Networks, Inc
- Manufacturer Part Number
- 17103
- Manufacturer Website Address
- http://www.extremenetworks.com
- Product Line
- Summit
- Product Model
- X670-48x
- Product Name

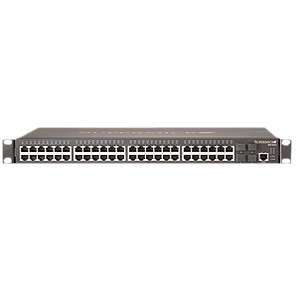

- Summit X670-48x Layer 3 Switch
- Product Series
- X670
- Product Type
- Layer 3 Switch
I/O Expansions
- Expansion Slot Type
- SFP+
- Number of SFP+ Slots
- 48
- Number of Total Expansion Slots
- 48
Interfaces/Ports
- LRE Port
- No
- Port/Expansion Slot Details
- 48 x 10 Gigabit Ethernet Expansion Slot
- Token Ring Port
- No
Management & Protocols
- Manageable
- Yes
- Management
- QoSCLIDHCPTelnetSNMP v1,v2c,v3SyslogMIBRMON 1,2,3,9VLANWeb-based ManagementsFlow
Media & Performance
- Network Technology
- 10/100/1000Base-T
Network & Communication
- Layer Supported
- 3
Physical Characteristics
- Compatible Rack Unit
- 1U
- Depth
- 17.4"
- Form Factor
- Rack-mountable
- Height
- 1.7"
- Weight (Approximate)
- 15.30 lb
- Width
- 19.3"
Power Description
- Input Voltage
- 220 V AC
- PoE (RJ-45) Port
- No
- Power Source
- Power Supply
- Redundant Power Supply
- Yes
