Conditions Available
Warranties Available
MP2-120C
by Emerson
8 x NEMA 5-20R - 3kVA - Cabinet, Rack-mountable
- Unspsc:
- 39121017
- Upc:
- 835514003113
- Description:
- When your computer system can't be without power evenfor maintenance - a Liebert MicroPOD ensures continuous uptime. The MicroPOD provides maintenance bypass capability as well as power output distribution, and can be used with virtually any micro-UPS system. The MicroPOD allows you to manually transfer your connected equipment to utility power via a maintenance bypass switch, permitting scheduled maintenance or UPS replacement without power disruption. Transferring back to UPS power is just as easy - just turn the switch to the indicated position and your load isprotected by the UPS.
General Information
- Brand Name
- Liebert
- Manufacturer
- Emerson Network Power
- Manufacturer Part Number
- MP2-120C
- Manufacturer Website Address
- http://www.emersonnetworkpower.com
- Product Name
- Micro Pod 3kVA PDU
- Product Type
- PDU
Miscellaneous
- Additional Information
- The POD is designed to operate as a maintenance bypass system in the following modesNormal - The UPS is continuously supplied available utility power by the POD. The UPS output power is returned to the POD and distributed to the critical AC load through the POD output receptaclesMaintenance Bypass - The bypass switch allows a transfer of the critical AC load from the UPS inverter to the utility source; to allow for service to or replacement of the UPS, without interrupting the loadBypass Switch: The bypass switch is capable of switching up to 20 or 30 amps, based on the model of the POD. The switch is a break before make type, with a maximum transfer time of 6msConnection to UPS Input: 5-20RConnection to UPS Output & cord length: 5-20P on attached 6 foot cord
- Certifications & Standards
- UL1778c-ULISTA Procedure 1A listedISO 9001
- Package Contents
- Micro Pod 3kVA PDUPower Cord - 10 ftUser manualBrackets for rack mounting
Physical Characteristics
- Color
- Black
- Cord Length
- 10
- Depth
- 3.5"
- Form Factor
- Rack-mountable
- Height
- 3.5"
- Width
- 17"
Power Description
- Input Voltage
- 120 V AC
- Output Voltage
- 120 V AC
- Power Rating
- 3 kVA
Technical Information
- Input Receptacles
- NEMA 5-20P
- Output Receptacles
- 8 x NEMA 5-20R

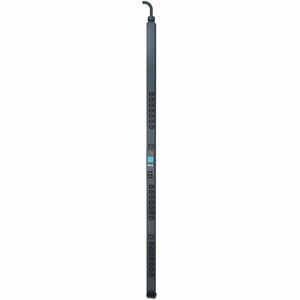

APC ap7552
