CTS-SX20-PHD12X-K9
by Cisco
CMOS - 1920 x 1080 Video - 2 x HDMI Out - 1 x Network (RJ-45) - Gigabit Ethernet
- Unspsc:
- 45111902
- Upc:
- 132017824031
- Description:
- The Cisco TelePresence® SX20 Quick Set (SX20 Quick Set) can transform any flat panel display into a sleek a powerful telepresence system. The SX20 Quick Set is designed to deliver high definition video and multiparty conferencing with the flexibility to accommodate various room size and configurations - all at a value price. The SX20 Quick Set supports embedded capability for multipoint support with Cisco® TelePresence MultiSite technology, enabling users to add three additional participants to a telepresence call.SX20 Quick Set combines a powerful codec, three camera choices, and a dual-display option in an easy-to-deploy and -use solution. Whether you're a small business just getting started with telepresence or a large enterprise looking to expand your existing deployment, the SX20 Quick Set delivers the performance you would expect from more expensive systems - in a compact and feature-rich package. Cisco TelePresence SX20 Quick Set is designed to truly extend the Power of In-Person to everyone, everywhere.
Audio
- Audio Encoding
- G.722.1
- Microphone Form Factor
- External
Camera
- Image Sensor Size
- 1/3
- Image Sensor Type
- CMOS
General Information
- Brand Name
- Cisco
- Manufacturer
- Cisco Systems, Inc
- Manufacturer Part Number
- CTS-SX20-PHD12X-K9
- Manufacturer Website Address
- http://www.cisco.com
- Product Line
- TelePresence
- Product Model
- SX20
- Product Name

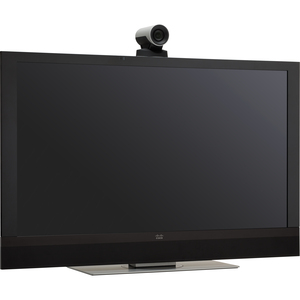

- TelePresence SX20 Quick Set With Precision HD 1080p 12x Camera
- Product Series
- SX
- Product Type
- Video Conference Equipment
Interfaces/Ports
- Auxiliary Audio In
- Yes
- Auxiliary Audio Out
- Yes
- DVI In
- Yes
- HDMI In
- Yes
- HDMI Out
- Yes
- Network (RJ-45)
- Yes
- Number of Audio Line In
- 2
- Number of Audio Line Out
- 1
- Number of Auxiliary Audio In
- 2
- Number of Auxiliary Audio Out
- 1
- Number of DVI In
- 1
- Number of HDMI Inputs
- 1
- Number of HDMI Outputs
- 2
- Number of Network (RJ-45) Ports
- 1
- USB
- Yes
Miscellaneous
- Package Contents

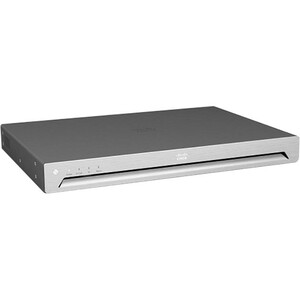

- TelePresence SX20 Quick Set With Precision HD 1080p 12x Camera SX20 Codec Cisco TelePresence Table Microphone 20 Remote Control Cables Power Supply
Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
Physical Characteristics
- Depth
- 7.1"
- Form Factor
- Wall Mountable
- Height
- 1.4"
- Weight (Approximate)
- 3.09 lb
- Width
- 11.8"
Technical Information
- ITU-T Recommendation
- H.460.18/19
- Video Bridging
- Point-to-Point
Video
- Graphics Modes
- WUXGA
- Maximum Frame Rate
- 60 fps
- Maximum Video Resolution
- 1920 x 1080
- Video Encoding
- H.264
