A901-6CZ-F-A
by Cisco
8 Ports - Management Port - 10 Slots - Gigabit Ethernet - Redundant Power Supply - 1U - Rack-mountable, Wall Mountable
- Unspsc:
- 43201602
- Upc:
- 882658526961
- Description:
- The Cisco® ASR 901 Series Aggregation Services Routers are environmentally hardened, high-speed, low-power-consumption routers optimized for any-generation cell-site Radio Access Network (RAN) backhaul and Ethernet access. By using Cisco ASR 901 routers, operators can reduce backhaul operating costs, simplify and converge their RAN and Ethernet access networks, and enhance their profit opportunities with mobile and premium Ethernet services.RAN cell sites are places of transformation between mobile radio and mobile transport networks. Cost-effective RAN backhaul requires the ability to simultaneously aggregate the transport of traffic from both traditional and next-generation radios across multiple transport options available at the cell site. The Cisco ASR 901 routers are designed to minimize operating costs and optimize this radio-to-transport transformation through scalable timedivision multiplexing (TDM) and IP/Ethernet interfaces for any combination of multivendor, multigeneration radios and transport networks.
Interfaces/Ports
- Token Ring Port
- No
- USB
- Yes
- Number of Network (RJ-45) Ports
- 8
- Powerline
- No
- Management Port
- Yes
- Total Number of Ports
- 8
- Serial V.35 Interface
- No
General Information
- Product Type
- Router Chassis
- Manufacturer Part Number
- A901-6CZ-F-A
- Manufacturer Website Address
- http://www.cisco.com
- Manufacturer
- Cisco Systems, Inc
- Product Model
- 901-6CZ-F-A
- Product Name
- ASR 901-6CZ-F-A Router
- Product Series
- ASR 901
- Brand Name
- Cisco
I/O Expansions
- Expansion Slot Type
- SFP+
- Number of Total Expansion Slots
- 10
Memory
- Flash Memory
- 128 MB
- Standard Memory
- 512 MB
- Memory Technology
- DDR3 SDRAM
Miscellaneous
- Certifications & Standards
- Safety: UL/CSA 60950-1 IEC/EN 60950-1 AS/NZS 60950.1 EMC Emission: FCC 47CFR15, Class A EN55022, Class A CISPR 22, Class A AS/NZS CISPR 22, Class A ICES 003, Class A VCCI, Class A KN 22, Class A EMC Immunity: EN/IEC61000-4-2 EN/IEC61000-4-3 EN/IEC61000-4-4 EN/IEC61000-4-5 EN/IEC61000-4-6
- Green Compliant
- Yes
- Green Compliance Certificate/Authority
- RoHS
Network & Communication
- Network Technology
- 10/100/1000Base-T
- Ethernet Technology
- Gigabit Ethernet
Physical Characteristics
- Weight (Approximate)
- 7.94 lb
- Form Factor
- Wall Mountable
- Height
- 1.7"
- Width
- 17.5"
- Depth
- 9.1"
- Compatible Rack Unit
- 1U
Power Description
- Input Voltage
- 220 V AC
- Power Source
- Power Supply
- Redundant Power Supply
- Yes
Management & Protocols
- Security Features
- AAA TACACS+ RADIUS Secure Shell (SSHv2) ACL Layer 3

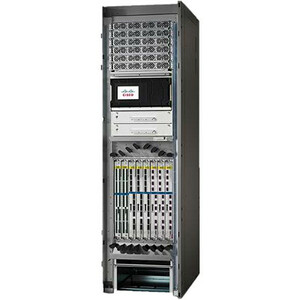

CISCO ncs-6008-sys-s
