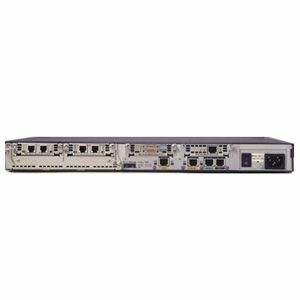

CISCO2801
by Cisco
4 x Expansion Slot, 2 x PVDM - 2 x 10/100Base-TX LAN, 1 x USB
- Unspsc:
- 43222609
- Upc:
- 115970709355
- Nsn:
- 7025015487612
- Description:
- The Cisco 2801 provides significant additional value compared to prior generations of Cisco routers at similar price points by offering up to a fivefold performance improvement, up to a tenfold increase in security and voice performance, new embedded service options, and dramatically increased slot performance and density while maintaining support for most of the more than 90 existing modules that are available today for the Cisco 1700, Cisco 2600, and Cisco 3700 Series.
General Information
- Brand Name
- Cisco
- Manufacturer
- Cisco Systems, Inc
- Manufacturer Part Number
- CISCO2801
- Manufacturer Website Address
- http://www.cisco.com
- Product Model
- 2801
- Product Name
- 2801 Router
- Product Series
- 2800
- Product Type
- Router
I/O Expansions
- Expansion Slot Type
- PVDM
- Number of Total Expansion Slots
- 8
Interfaces/Ports
- Management Port
- Yes
- Number of Network (RJ-45) Ports
- 2
- Total Number of Ports
- 2
- USB
- Yes
Memory
- Flash Memory
- 64 MB
- Maximum Memory
- 384 MB
- Memory Technology
- DRAM
- Standard Memory
- 128 MB
Miscellaneous
- Additional Information
- With the Cisco IOS Software Advanced Security feature set, the Cisco 2801 provides a robust array of common security features such as a Cisco IOS Software Firewall, intrusion prevention, IPsec VPN, Secure Shell (SSH) Protocol Version 2.0, and Simple Network Management Protocol (SNMPv3) in one secure solution setCisco CME is an optional solution embedded in Cisco IOS Software that provides call processing for Cisco IP phonesInterface Card Slots:2 slots support HWIC, WIC, VIC, or VWIC type modules1 slot supports WIC, VIC, or VWIC type modules1 slot supports VIC or VWIC type modulesOperation Altitude (derate 1.5°C per 1000 ft):25°C @ 3 km/10 kft40°C @ sea level
- Certifications & Standards
- IEEE 802.3: 10BASE-TIEEE 802.3u: 100BASE-TXUSB 1.1Safety:UL 60950CAN/CSA C22.2 No. 60950IEC 60950EN 60950-1AS/NZS 60950Immunity:EN300386EN55024/CISPR24EN50082-1EN61000-6-2EMC:FCC Part 15ICES-003 Class AEN55022 Class ACISPR22 Class AAS/NZS 3548 Class AVCCI Class AEN 300386EN61000-3-3EN61000-3-2TELCOM:Interfaces comply with FCC Part 68, CS-03, JATE Technical Conditions, European Directive 99/5/EC and relevant TBR's
- Package Contents
- 2801 RouterCisco 2801 IOS IP BASEDevice manager for routers (ROUTER-SDM)64MB CF default for Cisco 2800 Series (MEM2800-64CF-INC)Blank WAN Interface Card Panel (WIC-BLANK-PANEL)Cisco 2801 AC power supply (PWR-2801-AC)Power CordOne blue RJ-45-to-DB-9 console cableOne DB-9-to-DB-25 modem adapter19-inch (48.26-cm) rack-mount brackets with bracket screwsCable management bracket with one mounting screwRubber chassis feet for desktop applicationCisco product registration cardCisco 2800 Series and Cisco 3800 Series Regulatory Compliance and Safety Information documentCisco Router and Security Device Manager (SDM) Quick Start Guide documentCisco 2800 Series Integrated Services Routers Quick Start Guide
Network & Communication
- Ethernet Technology
- Fast Ethernet
- Network Technology
- 10/100Base-TX
Physical Characteristics
- Compatible Rack Unit
- 1U
- Depth
- 16.5"
- Form Factor
- Rack-mountable
- Height
- 1.7"
- Width
- 17.5"
Power Description
- Input Voltage
- 220 V AC
