PIX525
by Cisco
2 x 10/100Base-TX , 1 x Management, 1 x Management, 1 x
- Description:
- The Cisco PIX 525 Security Appliance delivers a wealth of advanced security and networking services for medium-to-large enterprise networks, in a reliable, purpose-built appliance. Its modular two-rack unit (2RU) design incorporates two 10/100 Fast Ethernet interfaces and supports a combination of up to eight additional 10/100 Fast Ethernet interfaces or three additional Gigabit Ethernet interfaces, making it an ideal choice for businesses requiring a high performance, Gigabit Ethernet-ready solution that provides solid investment protection.
Interfaces/Ports
- USB
- Yes
- Number of Network (RJ-45) Ports
- 2
- Management Port
- Yes
- Total Number of Ports
- 3
General Information
- Product Type
- Network Security/Firewall Appliance
- Manufacturer Part Number
- PIX-525
- Manufacturer Website Address
- http://www.cisco.com
- Manufacturer
- Cisco Systems, Inc
- Product Model
- 525
- Product Name
- PIX 525 Firewall
- Product Series
- 500
- Brand Name
- Cisco
I/O Expansions
- Expansion Slot Type
- PCI
- Number of Total Expansion Slots
- 5
Memory
- Flash Memory
- 16 MB
- Maximum Memory
- 256 MB
- Standard Memory
- 128 MB
- Memory Technology
- SDRAM
Miscellaneous
- Additional Information
- Supports load balancing across equal-cost multipath routesPIM Multicast RoutingShock (Operating): 1.14 m/sec (45 in./sec) 1/2 sine inputShock (Nonoperating): 30 GVibration (Operating): 0.41 Grms2 (3 to 500 Hz) random inputVibration (Nonoperating): 0.41 Grms2 (3 to 500 Hz) random inputAcoustic noise (Operating): 45 dBa maximumLayer 2 Transparent FirewallMulti-Vector Attack ProtectionUSB port is not used at the present timeIntegrates with Cisco Network IPS solutions to identify and dynamically block or shun hostile network nodesSecurity Contexts:Enables creation of multiple security contexts (virtual firewalls) within a single Cisco PIX Security ApplianceEnables service providers to deliver resilient multi-tenant firewall services with a pair of redundant appliancesAccess Control:Inbound/outbound ACLs for interfacesTime-based ACLsPer-user/per-group policies for improved control over network and application usageAccess-control capabilities for more than 100 predefined applications, services, and protocolsAbility to define custom applications and services for access-controlAdvanced Application Inspection:SQL NetNetwork File System (NFS)Internet Locator Service (ILS)Sun Remote Procedure Call (RPC)X.509 Certificates:BaltimoreCiscoEntrustiPlanet/NetscapeMicrosoftRSAVeriSign
- Certifications & Standards
- Common Criteria Evaluated Assurance Level 4 (EAL4)ICSA Labs Firewall 4.0 Certification, Corporate RSSP CategorySafety:UL 1950CSA C22.2 No. 950EN 60950IEC 60950AS/NZS3260TS001Electromagnetic Compatibility (EMC):CE markingFCC Part 15 Class AAS/NZS 3548 Class AVCCI Class AEN55022 Class ACISPR22 Class AEN61000-3-2EN61000-3-3IEEE:IEEE 802.1QIEEE 802.3IEEE 802.3u
Network & Communication
- Network Standard
- 10/100Base-TX
- Ethernet Technology
- Ethernet
Physical Characteristics
- Weight (Approximate)
- 32 lb
- Form Factor
- Rack-mountable
- Height
- 3.5"
- Width
- 17.5"
- Depth
- 18.3"
- Compatible Rack Unit
- 2U
Power Description
- Input Voltage
- 220 V AC
- Power Source
- Power Supply
Management & Protocols
- Manageable
- Yes
Technical Information
- Firewall Protection
- Protocol Anomaly Detection
- Virtualization
- 280000 x Concurrent Connection2000 x Simultaneous IPSec VPN Tunnel
- Features
- PAT

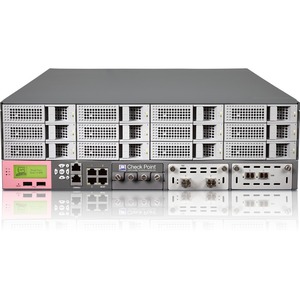

CHECKPOINT cpap-sg2205b
