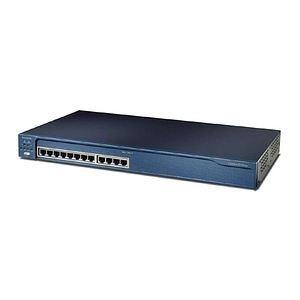

WS-C2950-12
by Cisco

---

12 x 10/100Base-TX

Number of Network (RJ-45) Ports

12

Total Number of Network Ports

12

Port/Expansion Slot Details

12 x Fast Ethernet Network

Product Type

Ethernet Switch

Manufacturer Part Number

WS-C2950-12

Manufacturer Website Address

http://www.cisco.com

Manufacturer

Cisco Systems, Inc

Product Model

2950-12

Product Name

Catalyst 2950-12 Ethernet Switch

Product Line

Catalyst

Product Series

2900

Brand Name

Cisco

Network Technology

100Base-TX

Twisted Pair Cable Standard

Category 5

Ethernet Technology

Fast Ethernet

Media Type Supported

Twisted Pair

Flash Memory

8 MB

Standard Memory

16 MB

Additional Information

64-port-based VLANS Cisco RPS Connector:Connection for an optional Cisco RPS 300 that uses AC input and supplies DC output to the switch300-watt redundant power system that can support six external network devices and provides power to one failed device at a timeAutomatically senses when the internal power supply of a connected device fails and provides power to the failed device, preventing loss of network trafficWhen internal power supply has been brought up or replaced, the RPS 300 automatically stops powering the deviceAttach only the Cisco RPS 300 (model PWR300-AC-RPS-N1) to the RPS receptacle

Certifications & Standards

Standards: IEEE 802.1x support (planned future software support)IEEE 802.3x full duplex on 10BaseT, 100BaseTX, and 1000BaseT portsIEEE 802.1D Spanning-Tree ProtocolIEEE 802.1p CoSIEEE 802.1Q VLANIEEE 802.3ab 1000BaseT specificationIEEE 802.3u 100BaseTX specificationIEEE 802.3 10BaseT specification Safety:UL/CSA G0950 Third EditionCSA 22.2 No. 950EN 60950IEC 950AS/NZS 3260, TS001CE Marking Electromagnetic Emissions:FCC Part 15 Class AEN 55022 Class A (CISPR 22 Class A)VCCI Class AAS/NZS 3548 Class ACE MarkingCLEI CodeBSMI Class A Y2K:Y2K compliant

Weight (Approximate)

6.50 lb

Height

1.7"

Width

17.5"

Depth

9.5"

Input Voltage

220 V AC

Power Source

Power Supply

Redundant Power Supply

Yes

Management

Management: SNMP Management Information Base (MIB) II, SNMP MIB extensions, Bridging MIB (RFC 1493) Superior Manageability:Cisco CMS allows the network administrator to manage up to 16 interconnected Catalyst 2950, 3550-12T, 3500 XL, 2900 XL, and 1900 switches through a single IP address and any standard Web browser, regardless of the location of the switches-that is, the switches do not have to be physically located in the same wiring closetSwitch clustering software upgrade allows network administrators to upgrade the system software of up to 16 interconnected switches through the easy-to-use Cisco CMS interface or a single CLI commandSimple Network Management Protocol (SNMP), and Telnet interface support delivers comprehensive in-band management, and a CLI-based management console provides detailed out-of-band managementManageable through CiscoWorks Windows network management software on a per-port and per-switch basis providing a common management interface for Cisco routers, switches, and hubsEmbedded Remote Monitoring (RMON) software agent supports four RMON groups (History, Statistics, Alarms and Events) for enhanced traffic management, monitoring, and analysisSwitch Port Analyzing (SPAN) port monitors traffic of a single port from a single network analyzer or RMON probeAutoconfiguration eases deployment of switches in the network by automatically configuring multiple switches across a network via a boot serverDomain Name Services (DNS) provide IP address resolution with user-defined device namesTrivial File Transfer Protocol (TFTP) reduces the cost of administering software upgrades by downloading from a centralized locationNetwork Time Protocol (NTP) provides an accurate and consistent timestamp to all switches within the intranetSpanning Tree Root Guard (STRG) prevents edge devices that are not in the network administrator's control from becoming STP root nodesMulti-function LEDs per port for Port Status, half-duplex/full-duplex, 10BaseT/100BaseTX/1000BaseT indication as well as switch-level status LEDs for system, RPS, and bandwidth utilization provide a comprehensive and convenient visual management system

Manageable

Yes

MTBF

318440 Hour
