Conditions Available
Warranties Available
CISCO1760-VPN/K9
by Cisco
1 x 10/100Base-TX LAN
- Unspsc:
- 43222609
- Upc:
- 746320684857
- Description:

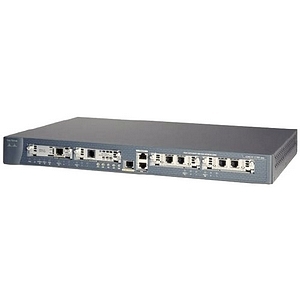

- The Cisco 1760 Modular Access Router offers small and medium-sized businesses and enterprise small branch offices a 19-inch rack-mount access solution designed to enable them to grow their e-business capabilities. The base version Cisco 1760 router, address the needs of customers who want to deploy e-business applications now or in the future. The Cisco 1760 router, as a modular platform in a 19-inch rack-mount form factor, offers customers secure Internet and intranet access, as well as the capability to implement a variety of e-business and voice applications. This includes voice over IP (VoIP), virtual private network (VPN) access, and business-class digital subscriber line (DSL) as required. The Cisco 1760 router is part of a broad portfolio of access routers optimized to deliver intelligent services such as quality of service (QoS), manageability, availability, and security. The base version Cisco 1760 router, address the needs of customers who want to deploy transformation technologies such as converged voice and data, IP telephony, or videoconferencing.
Interfaces/Ports
- Number of Network (RJ-45) Ports
- 1
- Management Port
- Yes
- Total Number of Ports
- 1
General Information
- Product Type
- Router
- Manufacturer Part Number
- CISCO1760-VPN/K9
- Manufacturer Website Address
- http://www.cisco.com
- Manufacturer
- Cisco Systems, Inc
- Product Model
- 1760
- Product Name
- 1760 Router
- Product Series
- 1700
- Brand Name
- Cisco
I/O Expansions
- Expansion Slot Type
- VIC
- Number of Total Expansion Slots
- 5
Memory
- Flash Memory
- 32 MB
- Maximum Memory
- 128 MB
- Standard Memory
- 96 MB
- Memory Technology
- DRAM
Miscellaneous
- Additional Information
- RJ-45 jack with EIA/TIA-232 interface (plug compatible with Cisco 2500 Series AUX port); asynchronous serial DTE with full modem controls (CD, DSR, RTS, CTS); asynchronous serial data rates up to 115.2 kbpsRJ-45 jack with EIA/TIA-232 interface (plug compatible with Cisco 1600 and 2500 Series console ports); asynchronous serial DTE; transmit/receive rates up to 115.2 kbps (default 9600 bps, not a network data port); note: no hardware handshaking such as RTS/CTSOne internal expansion slot: Supports hardware-assisted services such as encryption (up to T1/E1)
- Package Contents
- Power Cord,110V (CAB-AC)Blank WAN Interface Card Panel (WIC-BLANK-PANEL)CISCO1751 INTERCOOLER CLIP (MOD1751-CLIP)Cisco 1700 64MB to 96MB DRAM Factory Upgrade (MEM1700-64U96D)Cisco 1700 IOS IP/ADSL/FW/IDS PLUS IPSEC 3DESCisco 1700 Series VPN Module (MOD1700-VPN)Device manager for routers (ROUTER-SDM)
- Certifications & Standards
- Regulatory Approvals (Safety, EMC, and Telecom Compliance) Safety - UL 60950, 3rd Edition (includes Czech Republic) - CSA 22.2 No 60950, 3rd Edition - EN60950, 3rd Edition - TS001-1997 - AS/NZS 3260 with A1 through A4 - IEC 60950, 3rd Edition and all country deviations - ETSI 300-047 GOST-REMC - EN55022 (CISPR22) Class A - EN55022/EN50082 - CFR47 part 15 Class A - ICES 003, issue 2 Class A - VCCI Class A - AS/NZS 3548: Class A - EN55024 (CISPR24) Immunity: - EN61000-4-2 ESD - EN61000-4-3 Radiated immunity - EN61000-4-4 Electrical fast transients - EN61000-4-5 Surge - EN61000-4-6 Conducted RF immunity - EN61000-4-11 AC dips and sags - EN61000-3-2 AC harmonics and flickerGOST-R TelecomEurope: CTR2, CTR3, TBR21Canada: CS-03 Part I, II, VI, VIIIUnited States: TIA-IS-968Japan: JATEAustralia/New Zealand: TS002, TS003, TS006, S.043, TS031Brazil: AnatelChina: GB-514-92, YD-514-92; Hong Kong: HKTA 2011, 2014, 2015, 2017Hungary ETR328 (T)Mexico: CFTSingapore: IDAPoland PB-TE rev. 2 (T)South Africa: ICASASouth Korea: MIC
Network & Communication
- Network Technology
- 10/100Base-TX
- Ethernet Technology
- Fast Ethernet
Physical Characteristics
- Weight (Approximate)
- 9.40 lb
- Color
- Blue
- Form Factor
- Rack-mountable
- Height
- 1.7"
- Width
- 17.5"
- Depth
- 12.8"
Power Description
- Input Voltage
- 220 V AC
