DCS-7050S-52-F
by Arista Networks
Manageable - 52 x Expansion Slots - 100/1000Base-T - 52 x Expansion Slot - 52 x SFP+ Slots - 3 Layer Supported - Redundant Power Supply - 1U High - 1 Year
- Unspsc:
- 43222612
- Description:
- The Arista 7050 series switches offer wire speed layer 2/3/4 performance with 52 or 64 ports of 10GbE in a compact 1RU chassis. The 75050S-64 switch offers 48 SFP+ and 4 QSFP+ interfaces while the 7050S-52 switch offers 52 SFP+ interfaces. Each 40GbE port can also operate as four independent 10GbE ports to provide a total of 64 10GbE ports in the 7050S-64 model. The Arista 7050 series offers a latency of 800 to 1200 ns in cut-through mode, and a shared 9 MB packet buffer pool is allocated dynamically to ports that are congested. With a typical power consumption of less than 2 watts/port with twinax copper cables, and less than 3 watts/port with SFP/QSFP lasers, the 7050 Series provides industry leading power efficiency for the data center. An optional built-in SSD supports advanced logging, data captures and other services directly on the switch.
Interfaces/Ports
- USB
- Yes
- Port/Expansion Slot Details
- 52 x 10 Gigabit Ethernet Expansion Slot
General Information
- Product Type
- Switch Chassis
- Manufacturer Part Number
- DCS-7050S-52-F
- Manufacturer Website Address
- http://www.aristanetworks.com
- Manufacturer
- Arista Networks, Inc
- Product Model
- 7050S-52
- Product Name
- 7050S-52 Switch Chassis
- Product Series
- 7050
- Brand Name
- Arista Networks
I/O Expansions
- Expansion Slot Type
- SFP+
- Number of Total Expansion Slots
- 52
- Number of SFP+ Slots
- 52
Media & Performance
- Network Technology
- 100/1000Base-T
Memory
- Flash Memory
- 2 GB
- Standard Memory
- 4 GB
Miscellaneous
- Green Compliant
- Yes
- Green Compliance Certificate/Authority
- RoHS-6
Network & Communication
- Layer Supported
- 3
Physical Characteristics
- Weight (Approximate)
- 17 lb
- Form Factor
- Rack-mountable
- Height
- 1.8"
- Width
- 19"
- Depth
- 16"
- Compatible Rack Unit
- 1U
Power Description
- Input Voltage
- 220 V AC
- Power Source
- Power Supply
- Redundant Power Supply
- Yes
- PoE (RJ-45) Port
- No
Management & Protocols
- Management
- Command Line InterfaceSNMP v2, v3TelnetDHCPQoSVLANSyslog
- Manageable
- Yes

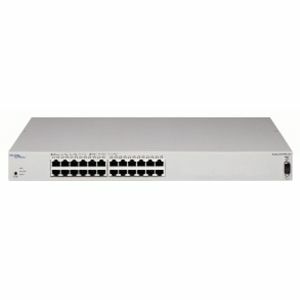

NORTEL al2012a45-e5
